CZI LP35 (Speaker and Spotlight for M350) **contact for pricing**
- Low stock - 1 item left
Overview

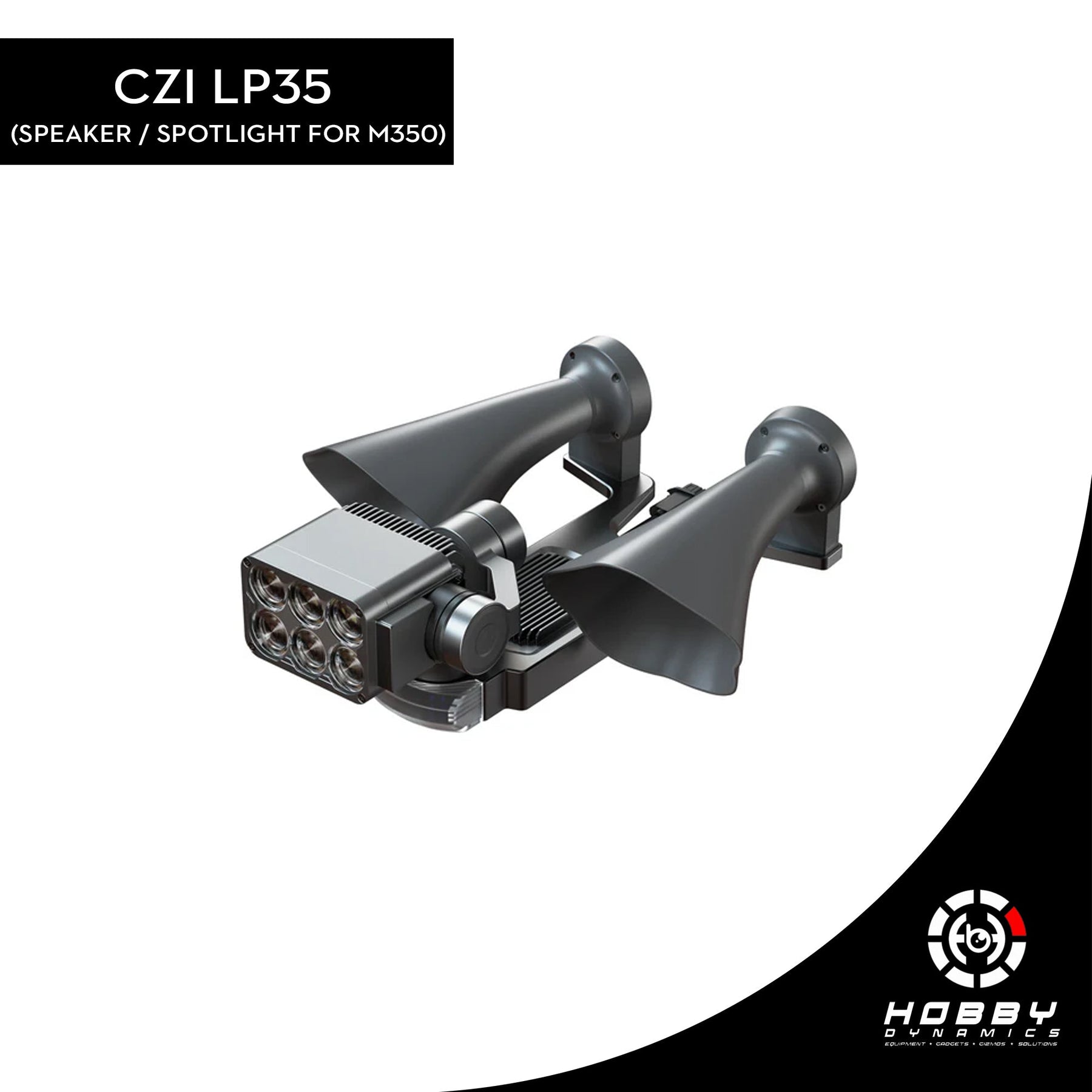

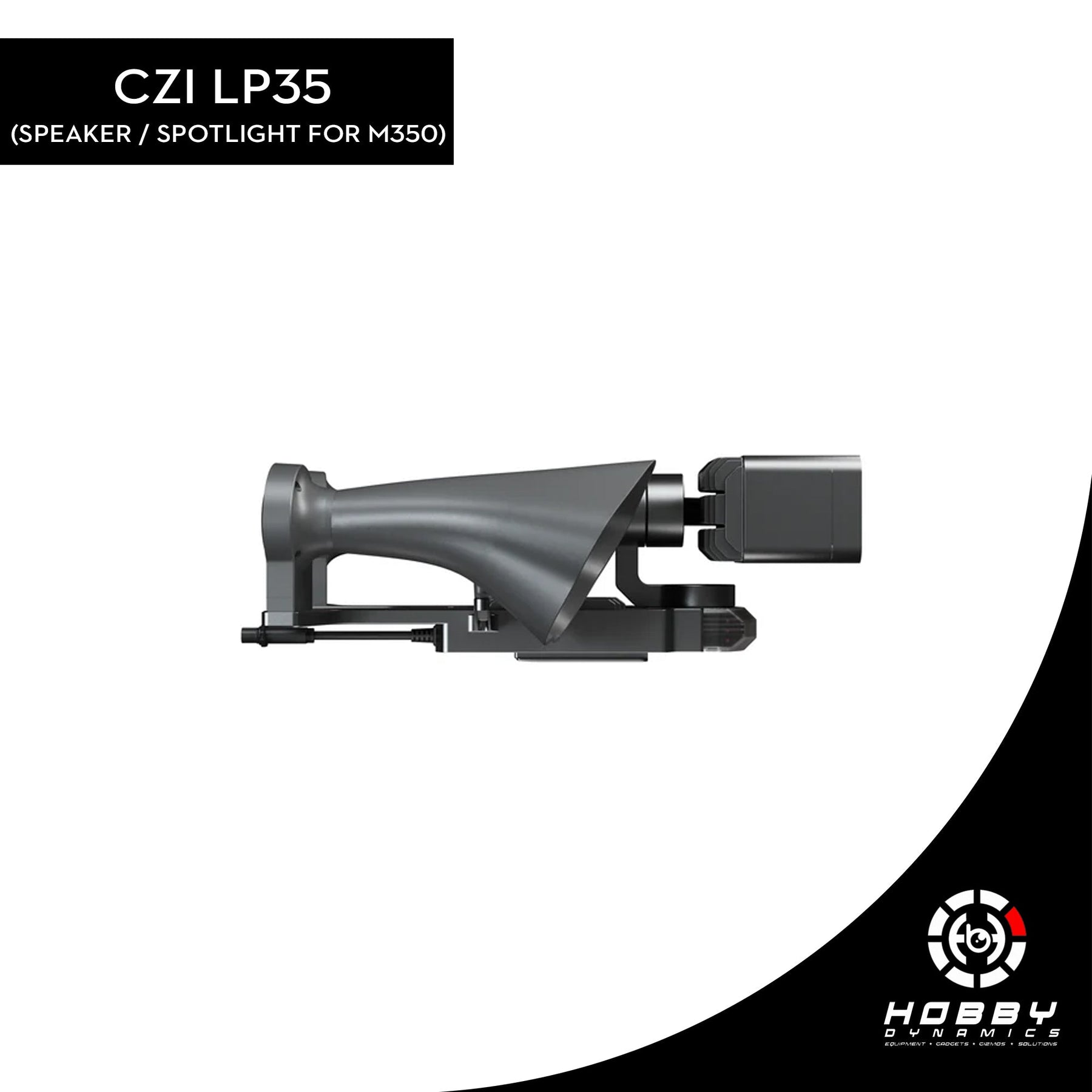

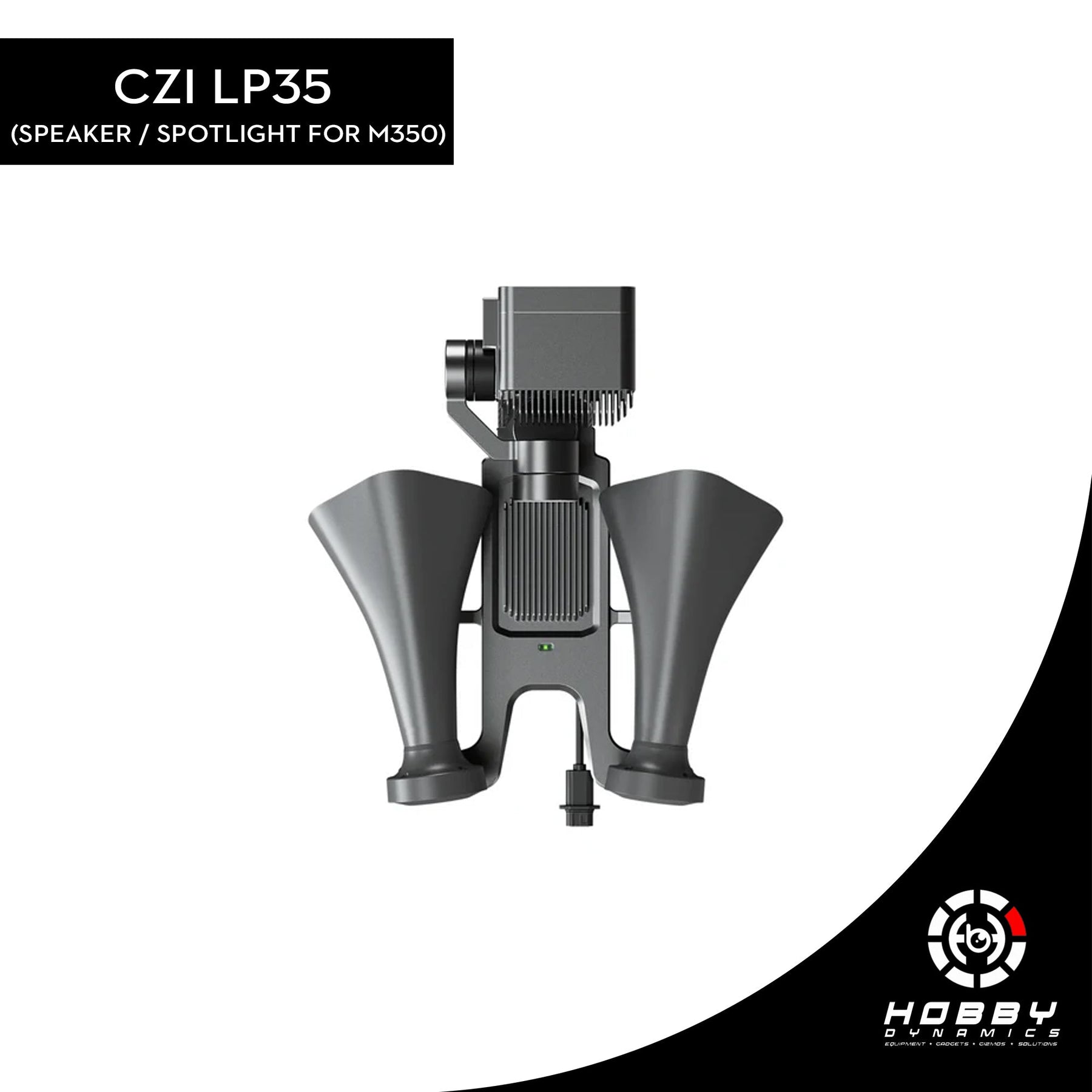

The CZI LP35 Drone Spotlight and Speaker is a versatile and powerful tool designed specifically for the DJI Matrice M350 RTK drone. Combining a 60W searchlight with a broadcasting system capable of delivering 126dB@1m and a 400m range, this lightweight device (≤550g) enhances situational awareness and communication in various scenarios. With red and blue flashing warning lights, seamless DJI OSDK compatibility, and AI-driven gimbal functionality, the LP35 offers unparalleled performance for both search and rescue operations and law enforcement applications. Its robust build and intuitive controls make it an essential upgrade for enterprise drone users.
Key Features
-
Powerful Searchlight:
- 6000±3% lumens with a narrow 13° beam for precise illumination.
- Central illuminance up to 6.3 lux, covering up to 917m² from 150m height.
- Adjustable brightness, angle control, and automatic camera linkage for targeted lighting.
-
Advanced Broadcasting System:
- Delivers up to 126dB@1m sound pressure with a 400m broadcasting range.
- Multiple broadcasting methods: live broadcasting, TTS, recording upload, and MP3 playback.
-
Enhanced Visibility:
- Red and blue flashing warning lights visible up to 200m, with multiple modes.
-
Intelligent Gimbal Integration:
- Gimbal rotation range: Pitch (+55°~-65°), Roll (±25°), Level (±35°).
- AI-enabled auto-follow for dynamic operations.
-
Lightweight and Durable Design:
- Weighs just 550g and built with premium materials to withstand challenging environments (-20°C to +50°C).
-
Seamless Connectivity:
- Fully compatible with DJI OSDK, supporting apps like czi Pilot, DJI Pilot, and czi Audio.
Specifications
General
| Parameter | Details |
|---|---|
| Model | LP35 |
| Dimensions (mm) | L235 × W220 × H85 |
| Weight | ≤550g |
| Total Power (Max) | 96W |
| Electrical Interface | DJI OSDK |
| Operating Temperature | -20°C to +50°C |
| Bluetooth Protocol | Bluetooth v4.2 BR&EDR, Low Energy |
| Bluetooth Frequency | 2400–2483.5 MHz |
Spotlight
| Parameter | Details |
|---|---|
| Light Flux | 6000±3% lm |
| Field of View (FOV) | 13° |
| Illumination Distance | 150m (917m² area), 100m (407m² area), 50m (102m² area) |
| Central Illuminance | 6.3 lux (150m), 14.4 lux (100m), 57 lux (50m) |
| Spot Diameter | 34m (150m), 22.8m (100m), 11.4m (50m) |
| LED Power | 60W |
| Gimbal Rotation | Pitch: +55°~-65°, Roll: ±25°, Level: ±35° |
Speaker
| Parameter | Details |
|---|---|
| Sound Pressure | 126dB@1m |
| Broadcast Distance | 400m |
| Power | 30W |
| Broadcast Methods | Live, Recording Upload, MP3 Playback, TTS |
Flashing Lights
| Parameter | Details |
|---|---|
| Modes | Red/Blue Blinking, Red Blinking, Blue Blinking |
| Visibility Distance | 200m |
Applications
- Search and Rescue: Powerful searchlight and long-range broadcasting make it ideal for finding and directing rescue targets.
- Law Enforcement: Warning lights and live broadcasting enhance situational control during operations.
- Industrial Inspections: AI-enabled searchlight ensures precise illumination of large or hard-to-reach areas.
- Public Safety: Effective for disaster response, crowd management, and emergency announcements.
The CZI LP35 is an essential tool for professional drone operators, delivering superior lighting, communication, and situational awareness for the most demanding missions.
